Woven Hexagonal heavy galvanized Stone Cage Iron Wire Material Gabion Box Gabion Wire Mesh
Gabion Wire Mesh Introduction:
Gabion wire mesh is weaved by corrosion resistance, high strength and good ductility galvanized wire or PVC coating wire through mechanical. Wire's material is zinc-5% aluminum alloy (galfan), low carbon steel, stainless steel or iron. Gabion mattress is similar to gabion basket. But gabion mattress's height is lower than gabion basket, structure is flat and big. Gabion basket and gabion mattress are stone containers, uniformly partitioned into internal cells, interconnected with other containers and filled with stone at site to form flexible, permeable, monolithic structures to control and guide water or flood, protect dam or seawall, or used as retaining walls, channel lining and other applications.
Gabion Wire Mesh material:
1.material:low carbon iron wireQ195
2.wire gauge:2.0mm--5.0mm
3.hole size:60*80,80*100,100*120,120*150
4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement
5.surface treatment:electro galvanized,hot dipped galvanized
Gabion wire mesh features:
1. Economical.
2. Construction is simple without special skills.
3. It can strongly withstand damage from nature and also large-scale deformation, which does not collapse.
4. Has good permeability to prevent static fluid.
5. Can be folded up and Save transportation costs.
Gabion wire mesh application:

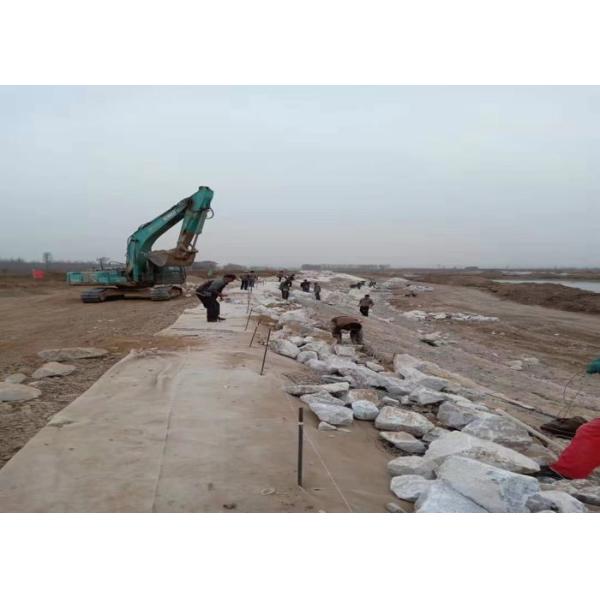

Gabion wire mesh are used for river bank and scour protection, channel linings for erosion control, and embankment stability. They are filled with rock at the project site to form flexible, permeable, monolithic structures to promote rapid growth of natural vegetation. The base section of the Gabion box is divided into compartments and filled with stones at the project site. With lids secured, Gabion box form flexible, permeable, monolithic structures.
Gabion Wire Mesh specificaiton:
Gabion box (mesh size):
80*100mm
100*120mm | Mesh Wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Edge wire diameter | 3.4mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g,≥220g/m2 |
Gabion mattress(mesh size):
60*80mm | Mesh Wire diameter | 2.2mm | zinc coating:60g, ≥220g/m2 |
| Edge wire diameter | 2.7mm | zinc coating:60g,245g, ≥270g/m2 |
| Tie wire diameter. | 2.2mm | zinc coating:60g, ≥220g/m2 |
Special sizes Gabion
are available | Mesh Wire diameter | 2.0-4.0mm | superior quality,competitive price and
considerate service |
| Edge wire diameter | 2.7-4.0mm |
| Tie wire diameter. | 2.0-2.2mm |
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
