Surface Treatment PVC Coated Electric Galvanized Hot Dipped GalvanISO9001 Soil Protection Welded Gabion Wire Mesh Boxes
Galvanized Gabion Box Information:
Gabion boxes are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC coated wires, the mesh shape is hexagonal style. The gabion boxes are used widely in slope protection, foundation pit suporting, mountain rock holding, river and dams scour protection.
Gabion boxes can be supplied in various lengths, widths and heights. In order to strengthen the boxes,all the edges of the structure shall be selvedged with wire of bigger diameter.
1. Materials of gabion mesh:
low carbon steel wire, galvanized iron wire
2. Surface of gabion mesh:
electro galvanized , hot dipped galvanized, galfan, pvc coated
3. Features:
1) corrosion- resistant, rust-resistant.
2) oxidation –resistant, good tensile strength.
3) uniform mesh size, flat and even mesh surface, weave tightly.
4) galvanized /pvc coated for longer life, low costs
5) easy to handle and cut.
4. Function of gabion mesh:
1) It is widely used in petroleum, construction, farming, chemical industry, heating pipes and other pipes parcel wire mesh.
2) It can be used to make stone wire mesh cages, which are widely used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering, also it is the best material for flood.
Galvanized Gabion Box specificaiton:
| Length | Width | Height | Diaphragm | CUM | The tolerance |
| M | M | M | Unit | M3 | |
| 2 | 1 | 0.3 | 1 | 0.6 | |
| 3 | 1 | 0.3 | 2 | 0.9 | |
| 4 | 1 | 0.3 | 3 | 1.2 | length+-3% |
| 2 | 1 | 0.5 | 1 | 1 | width+-5% |
| 3 | 1 | 0.5 | 2 | 1.5 | height+-5% |
| 4 | 1 | 0.5 | 3 | 2 | |
| 1 | 1 | 0.5 | 0 | 1 | Hole size |
| 1.5 | 1 | 1 | 0 | 1.5 | 60x80mm |
| 2 | 1 | 1 | 1 | 2 | 80x100mm |
| 3 | 1 | 1 | 2 | 3 | 100x120mm |
| 4 | 1 | 1 | 3 | 4 | |
Galvanized Gabion Box application
1). Control and guide of water or flood
2). Preventing of rock breaking
3). Rock fall protection
4). Water and soil protection
5). Bridge protection
6). Strengthening structure of soil
Galvanized Gabion Box Package:
1.With plastic weaving bags outside
2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport and further installation.
Packing details:
1) Outside with plastic film
2) In bundle
3) As per customer's special request
Shipping:
Samples will be shipped by express service - DHL, EMS, UPS, TNT or Fedex.
1, By counier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;
2, By air to the air port, usual 3-5 days arrives;
3, By sea to the sea port, usual 25-45 days
Product Tags:
|
|

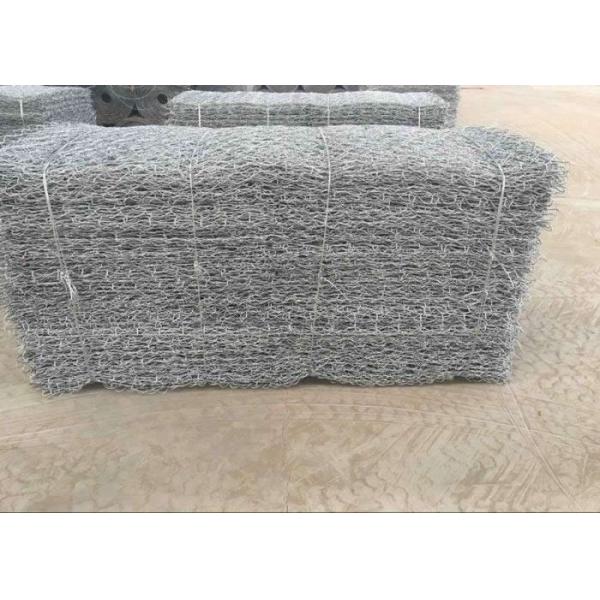

Electric Galvanized Soil Protection 2.0mm Welded Gabion Box Images
|
